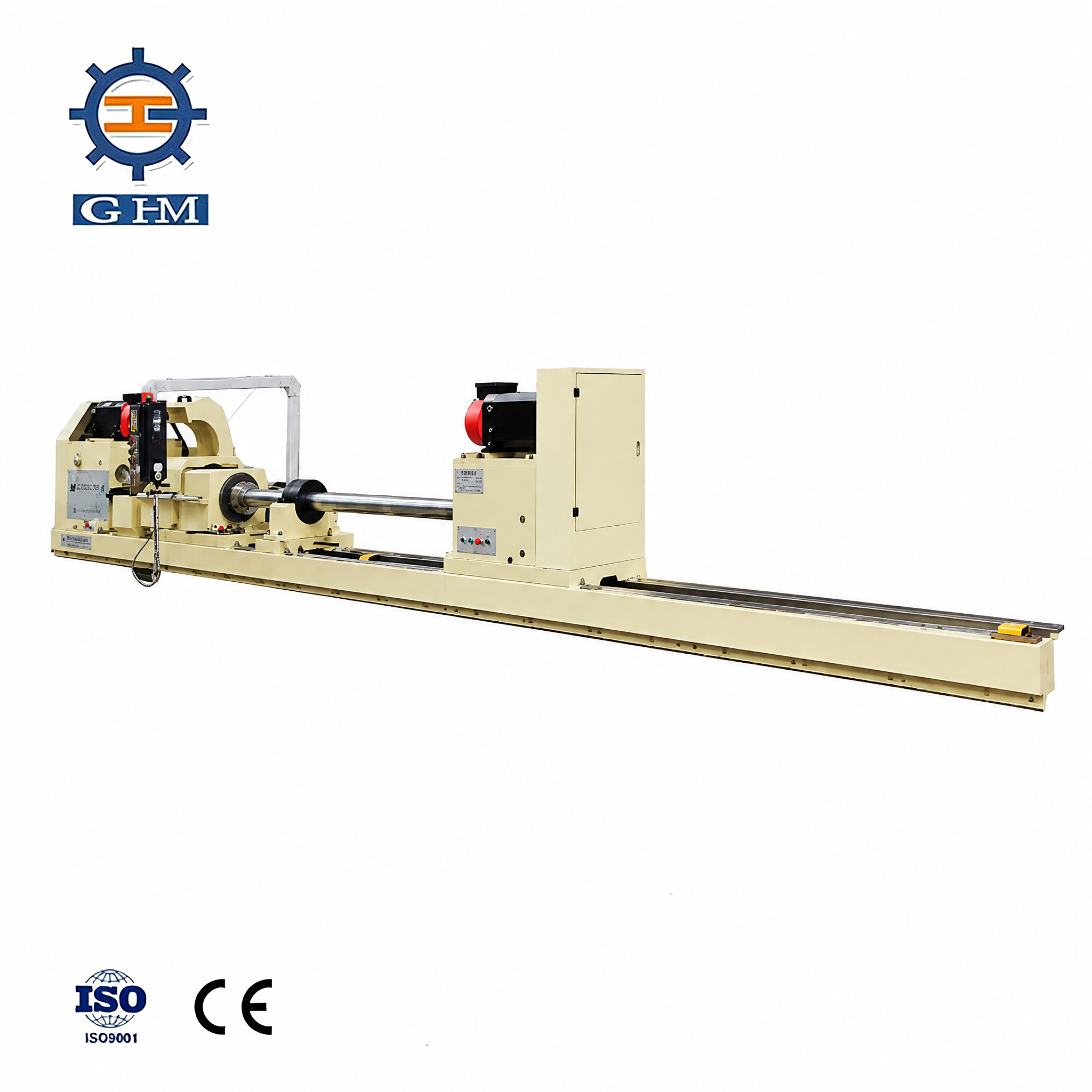

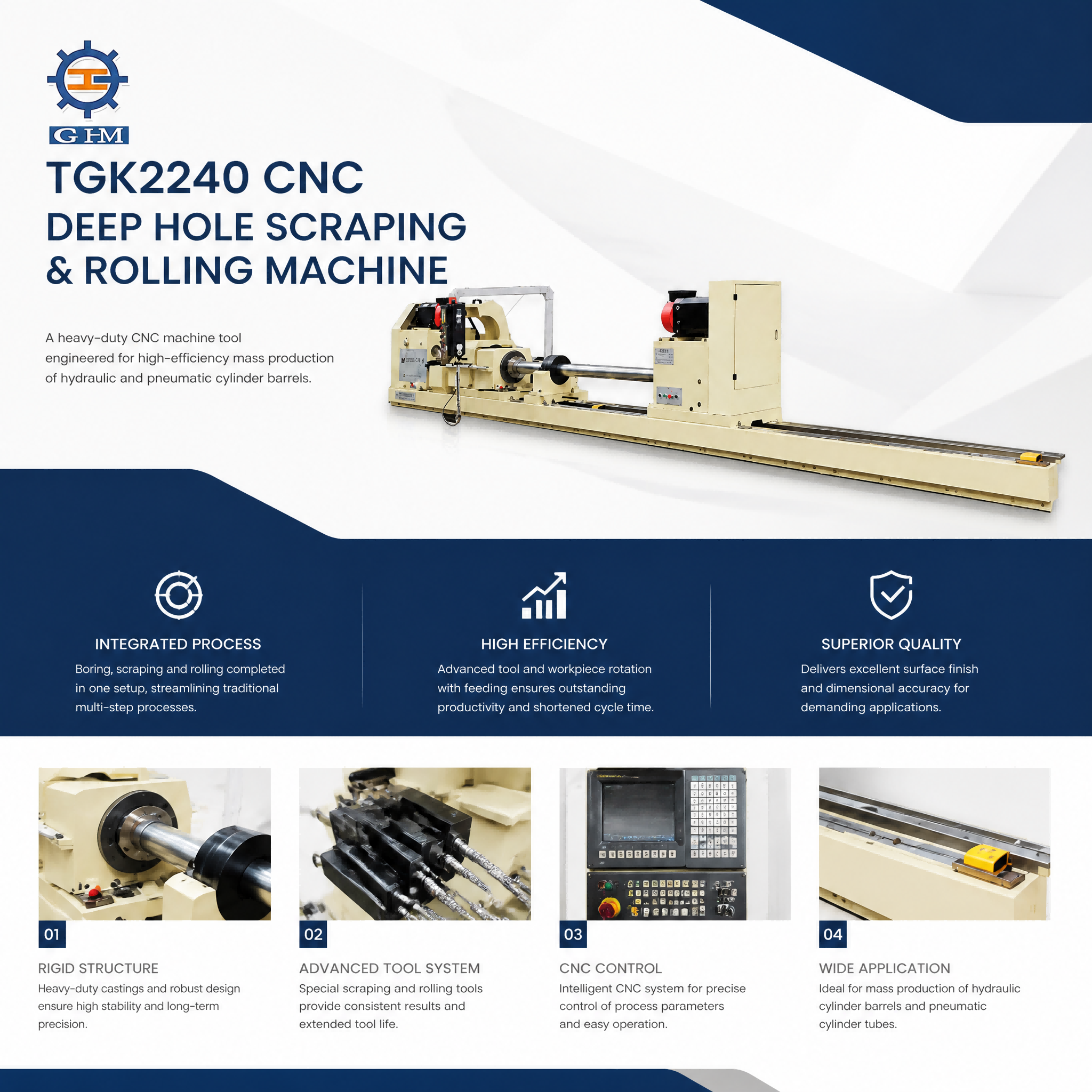

TGK2240 CNC Skiving roller burnishing machine
The TGK2240 CNC deep hole Skiving roller burnishing machine is mainly used for mass production of cylinder barrels. It is configured according to workpiece rotation tool rotation and is suitable for boring, scraping, and rolling operations. It can efficiently perform rough boring, as well as one-time boring, scraping, and rolling operations. The machining aperture accuracy is IT7-IT10 level, and the surface roughness is not greater than Ra0.2-0.4 μ m.

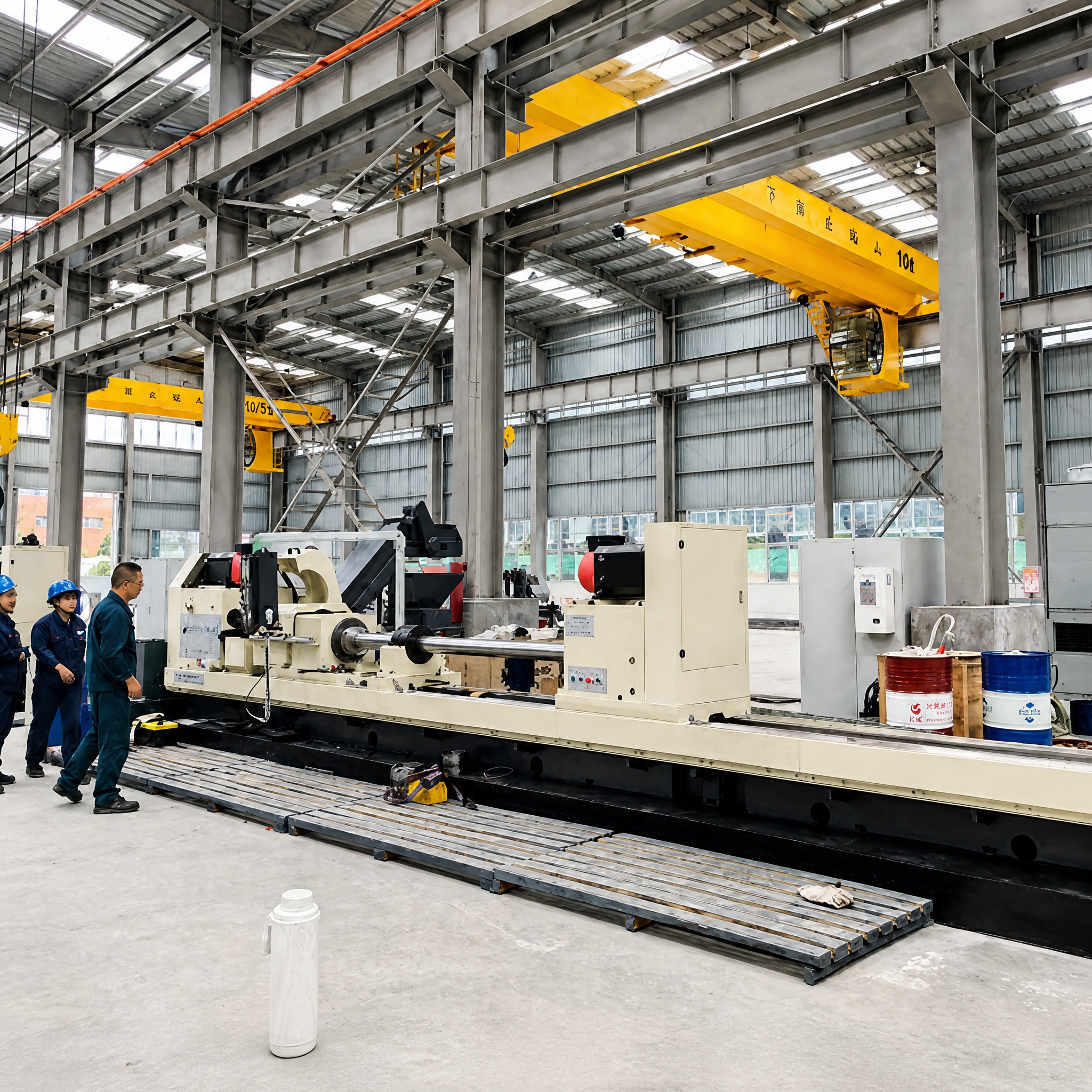

The TGK2240 CNC deep hole Skiving roller burnishing machine adopts a machining method of workpiece rotation and tool rotation feed. The spindle has a large bore structure, which can facilitate the discharge of iron chips and cutting fluid. The bed adopts double rectangular guide rails. The oil feeder moves through a servo motor and is positioned and pressed against the workpiece through a tapered hole. Adopting the hydraulic station in Yongzhen, Taiwan. The cooling system adopts an above ground oil tank structure, and the filtration method adopts a chip conveyor magnetic separator filtration method. The machine tool is equipped with a German SIEMENS CNC system, and the cylinder length is not more than 3m, using ball screw feed. For cylinder lengths greater than 3m, gear rack feed is used. The machine tool is equipped with high-efficiency automatic expansion and contraction combination cutting tools, and the machining efficiency is 3 to 5 times that of traditional deep hole machine tools.
Product application
Applied to aerospace, automotive manufacturing, oil and gas pipelines, lifting equipment, gun pipelines, bearings and other manufacturing industries.
We can customize according to your requirements.
CNC Skiving & Roller Burnishing for Cylinder-Barrel Production
Confirm bore size, tube length, material, incoming allowance and production volume before selecting the machine and tooling package.
Machining Range
| Bore range | Ø100–420 mm |
|---|---|
| Machining depth | 1,000–8,000 mm |
| Length-to-diameter ratio | Calculated from the submitted bore and depth |
| Published accuracy | IT7–IT10 |
| Published surface roughness | Ra ≤0.2–0.4 μm |
| Model reference | TGK2240 |
Workpiece Materials & Industries
- Cylinder barrels and hydraulic-cylinder tubes
- Steel tubes suitable for boring, skiving and roller burnishing
- Final suitability depends on hardness, allowance and straightness
- Hydraulic and lifting equipment
- Automotive manufacturing
- Oil and gas equipment
- Aerospace and precision cylinders
Single-Station or Multi-Station?
- Single-station: flexible product mix or moderate batch production
- Multi-station/automation: stable part family and higher-volume production after takt-time review
Final selection follows drawing, allowance, annual volume and cycle-time review.
Standard & Optional Configuration
Standard- SIEMENS 808 CNC system
- Workpiece-rotation and tool-rotation/feed arrangement
- Cooling and chip-filtration system
- Automatic expansion/contraction combination tooling
- Customized workholding and tooling
- Rack feed configuration for cylinders over 3 m
- Automatic loading and unloading
- Additional filtration, gauging and traceability
Delivery, Acceptance & Support
- Application and drawing review
- Technical agreement and confirmed delivery schedule
- Manufacturing progress updates
- Pre-shipment run-off and acceptance report
- Installation, commissioning and operator training
- Remote diagnosis, spare parts and after-sales support
Delivery time is quoted after configuration and acceptance scope are frozen.
Cases, Video & Inspection Evidence
- Published TGK2240 parameter table on this page
- Pre-shipment run-off and inspection report for the agreed workpiece
- Customer-approved production video and country case available on request
Get a Process and Machine Recommendation
Send bore diameter, depth, material, allowance, accuracy, roughness, annual volume and drawing.
technical parameter | TGK2240(1-8m） |
|---|---|
Bore diameter range(mm) | 100-420 |
Maximum depth of boring hole(mm) | 1000-8000 |
Machine tool guide rail width(mm) | 755 |
Center height (from flat guide rail to spindle center)(mm) | 625 |
Range of feed rate(mm/min) | 10-3500、stepless |
Headboard box main motor | N=60kW |
Headboard spindle speed range/series | 5～80r/min、stepless |
Main motor of boring bar box | N=60kW |
Boring bar spindle speed range/series | 10～500r/min |
Workpiece clamping range(mm) | 100-350 |
feed motor | N=7.5kW |
Numerical Control System | SIEMENS/808 |
Hydraulic pump motor | N=2.2kW n=1440r/Min |
Cooling pump motor | N=711kW n=1440r/Min |
Rated pressure of cooling system(Mpa) | 0.6 |
Cooling system flow rate(l/min ) | 100-1200 |
