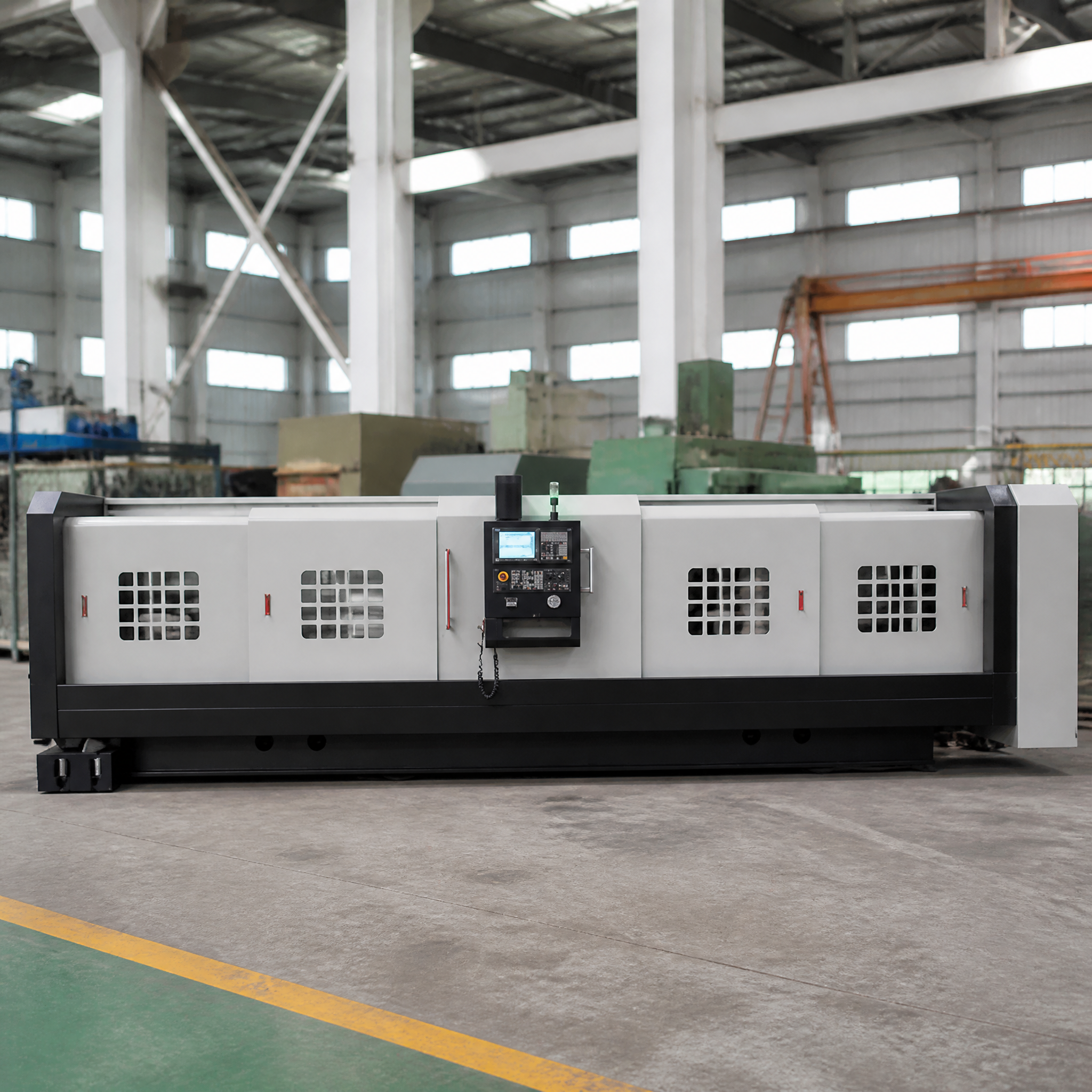

TZK16×1.5M CNC Deep Hole Drilling And Boring Machine

Short Description:

TZK16x1.5M CNC Deep Hole Drilling And Boring Machine has a wide range of applications, including drilling, expanding, nesting, and boring. When boring, both combination tools and single process tools such as rough boring, fine boring, and rolling can be used.

Machine tool type: Deep Hole Drilling And Boring Machine
Machine tool model: TZK16X1.5M

Send email to us 131-8136-8988

Product Detail

Product Tags

　　TZK16X1.5M CNC deep hole drilling and boring machine is a new type of machine tool recently developed by Dezhou Guanghe Machine Tool Co., Ltd. based on market demand.

　　Machine Tool Features

　　1. Machine tool human-computer interaction, simple operation, high degree of intelligence.

　　2. Machine tools have a wide range of applications, including drilling, expanding, nesting, and boring. When boring, both combination tools and single process tools such as rough boring, fine boring, and rolling can be used. The basic model of the machine tool can be used for boring holes to a diameter of 160mm and drilling holes to a diameter of 80mm.

　　3. The machine tool is designed using software from Dassault Systeme in France. Improved usability and technological sense compared to traditional machine tools.

　　4. Machine tools have good economic efficiency, occupy less user funds, and occupy less factory space.

　　5. The machine tool has good universality, and most of the parts used can be interchanged with old products.

　　Product application

　　Applied to aerospace, automotive manufacturing, oil and gas pipelines, lifting equipment, gun pipelines, bearings and other manufacturing industries.

　　We can customize according to your requirements.

Deep Hole Drilling & Boring Process Review

Send the drawing, bore range, depth, material, starting condition and finishing requirement for machine and process selection.

Machining Range

Drilling range	Ø20–80 mm
Maximum boring diameter	Ø160 mm
Maximum depth	1,500 mm
Length-to-diameter ratio	Calculated from the submitted operation and bore size
Accuracy	Confirmed for the selected drilling or boring route
Surface roughness	Confirmed for the selected drilling, boring or rolling route

Workpiece Materials & Industries

Steel and alloy deep-hole workpieces
Shaft, sleeve, cylinder and tube-type components
Material hardness and incoming-hole condition must be supplied

Aerospace
Automotive manufacturing
Oil and gas equipment
Lifting equipment
Bearings and heavy machinery

Single-Station or Multi-Station?

Single-station: flexible drilling, expanding, trepanning and boring work
Multi-station: stable part families where loading, tool change and takt time justify automation

Final selection follows drawing, allowance, annual volume and cycle-time review.

Standard & Optional Configuration

Standard

CNC control and spindle/feed system
Cooling system
Workholding and steady-rest arrangement as required
Standard guards, manuals and acceptance documentation

Optional

Rough boring, finish boring and rolling tooling
Customized fixtures and work supports
Enhanced chip removal and filtration
Automatic loading, gauging and traceability

Delivery, Acceptance & Support

Application and drawing review
Technical agreement and confirmed delivery schedule
Manufacturing progress updates
Pre-shipment run-off and acceptance report
Installation, commissioning and operator training
Remote diagnosis, spare parts and after-sales support

Delivery time is quoted after configuration and acceptance scope are frozen.

Cases, Video & Inspection Evidence

Published TZK16 × 1.5 m parameter table on this page
Pre-shipment inspection report supplied for the agreed workpiece
Customer-approved case and video package available on request

Get a Process and Machine Recommendation

Send bore diameter, depth, material, allowance, accuracy, roughness, annual volume and drawing.

Submit Workpiece Parameters for a Technical Proposal

Drilling diameter range	φ20mm～φ80mm
Maximum diameter of boring hole	φ160mm
center height	350mm
Maximum depth range of boring hole	1500mm
Main spindle speed range and stages	10-400r/min
Range of feed rate	5～1000mm/min
Main motor	N=30kW
feed motor	2.3kW
Cooling pump motor	N=5.5kW
Rated power of cooling system	2.5MPa
Cooling flow rate	300L/MIN
