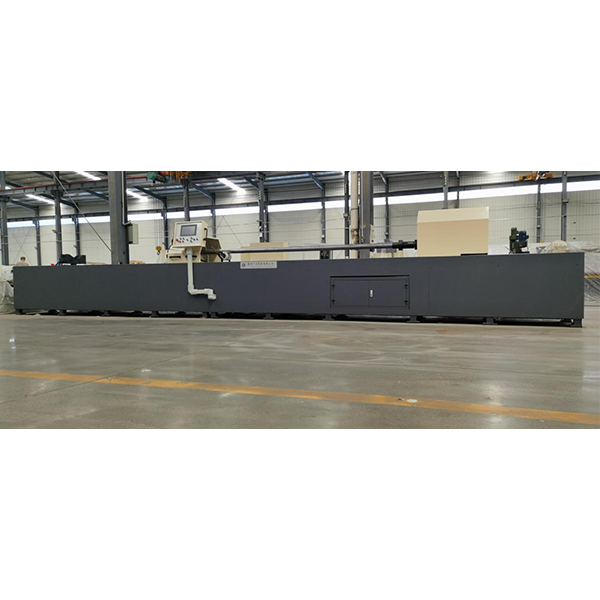

Korean2MK25 deep hole honing machine

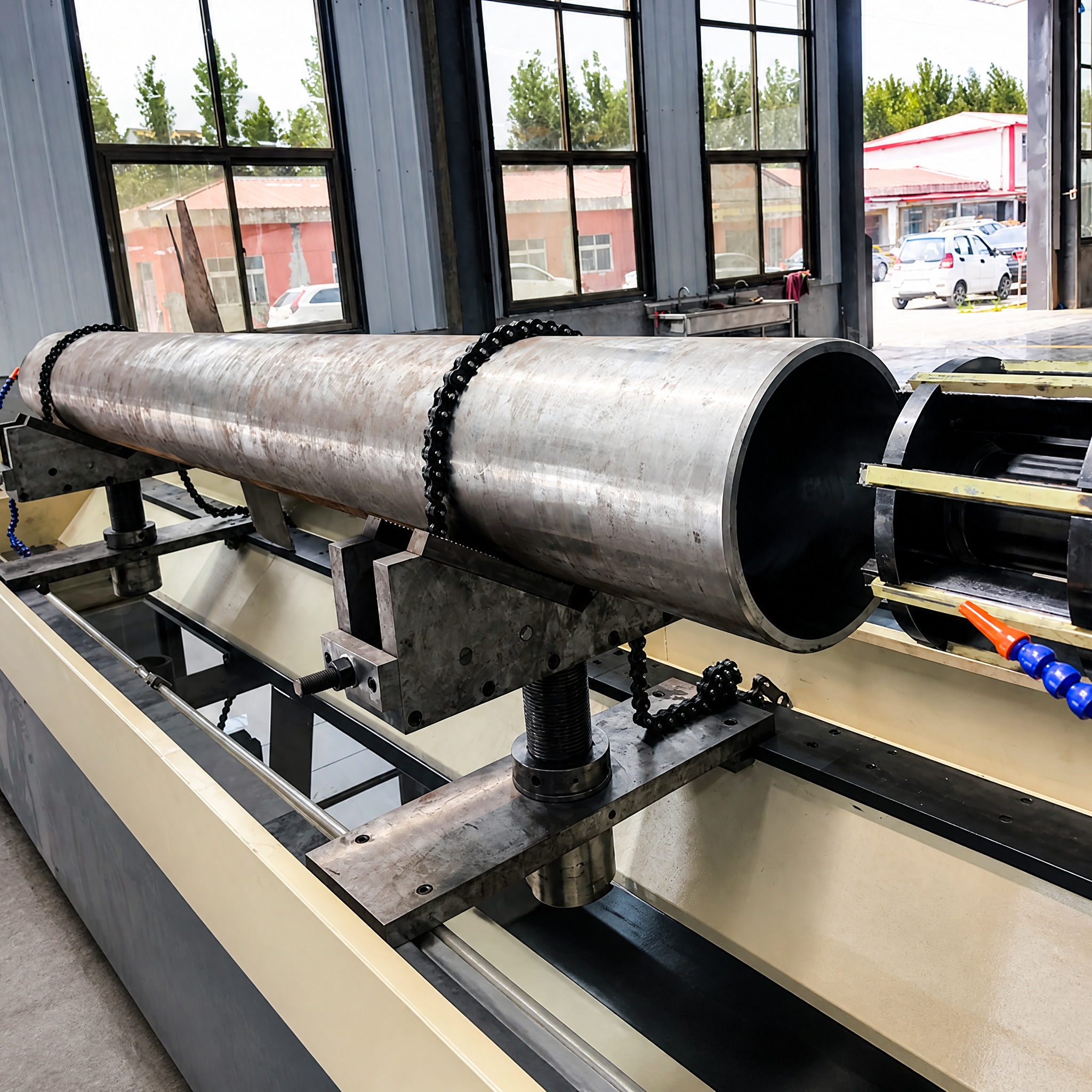

The 2MK25 honing machine is an ideal equipment with high precision and efficiency, suitable for honing and polishing cylindrical deep hole workpieces, such as various hydraulic cylinders, cylinders and other precision pipe fittings. Specially suitable for honing and polishing workpieces with step holes. Its machining aperture accuracy can reach IT7~IT8 level or above, and the surface roughness can reach Ra0.2-0.4 μ m. By using local honing, the taper, ellipticity, and local aperture errors of the workpiece can be corrected. For some cold drawn steel pipes, they can be directly subjected to strong honing.
In addition, the CNC system, linear guides, hydraulic valves, and other configurations of the 2MK25 CNC deep hole honing machine can be selected or specified according to user requirements.
Product application
Applied to aerospace, automotive manufacturing, oil and gas pipelines, lifting equipment, gun pipelines, bearings and other manufacturing industries.
We can customize according to your requirements.
Processing aperture range (mm) | 32-250 |
Maximum processing depth (mm) | 10000 |
Range of spindle speed for grinding rod box (r/min) | 20-250 |
Range of workpiece clamping diameter (mm) | 50-350 |
Range of reciprocating speed of trailer (m/min) | 1-25 Stepless adjustable |
Flow rate of cooling pump (l/min) | 50 |
Working pressure of the hydraulic system for expanding the grinding head (MPa) | 0.5-6 |
Main motor power of grinding rod box (kW) | 15 |
Grinding rod box reciprocating motion motor | 6 AC servo |
Grinding head expansion motor power (kW) | 1.5 |
Cooling system motor power (kW) | 0.25 |
