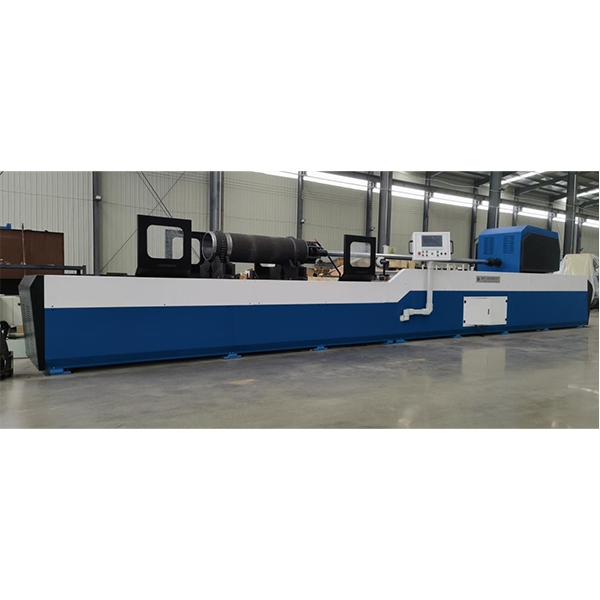

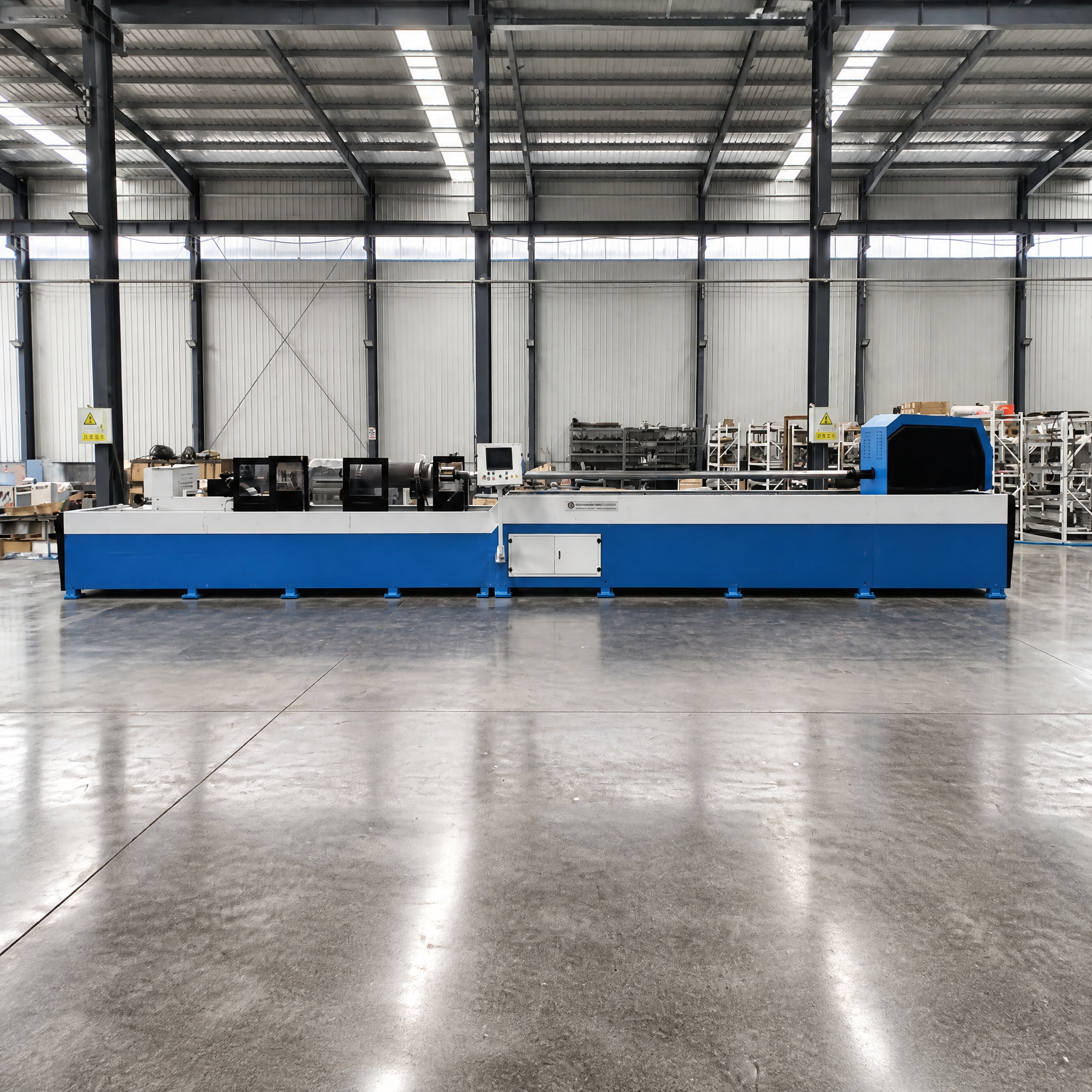

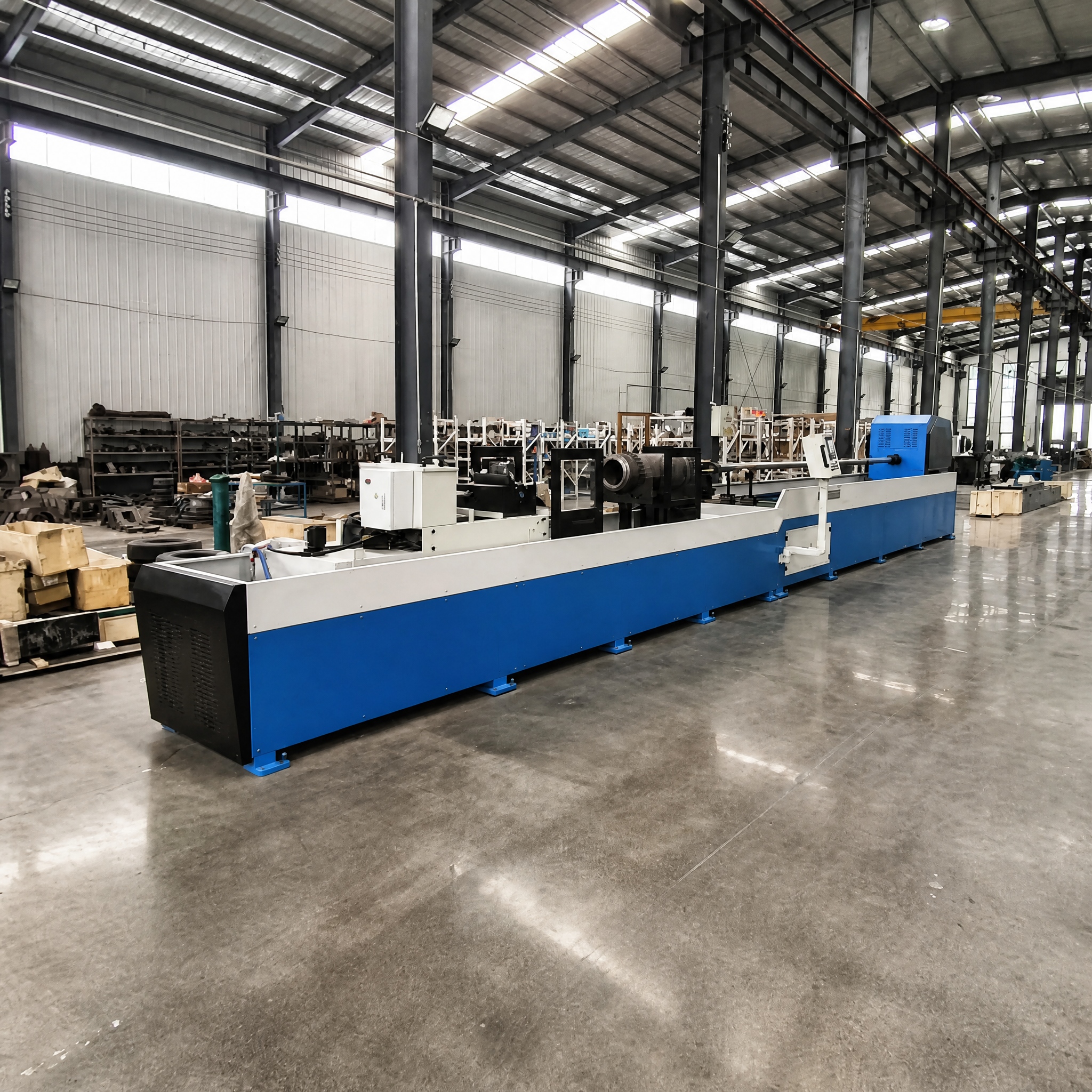

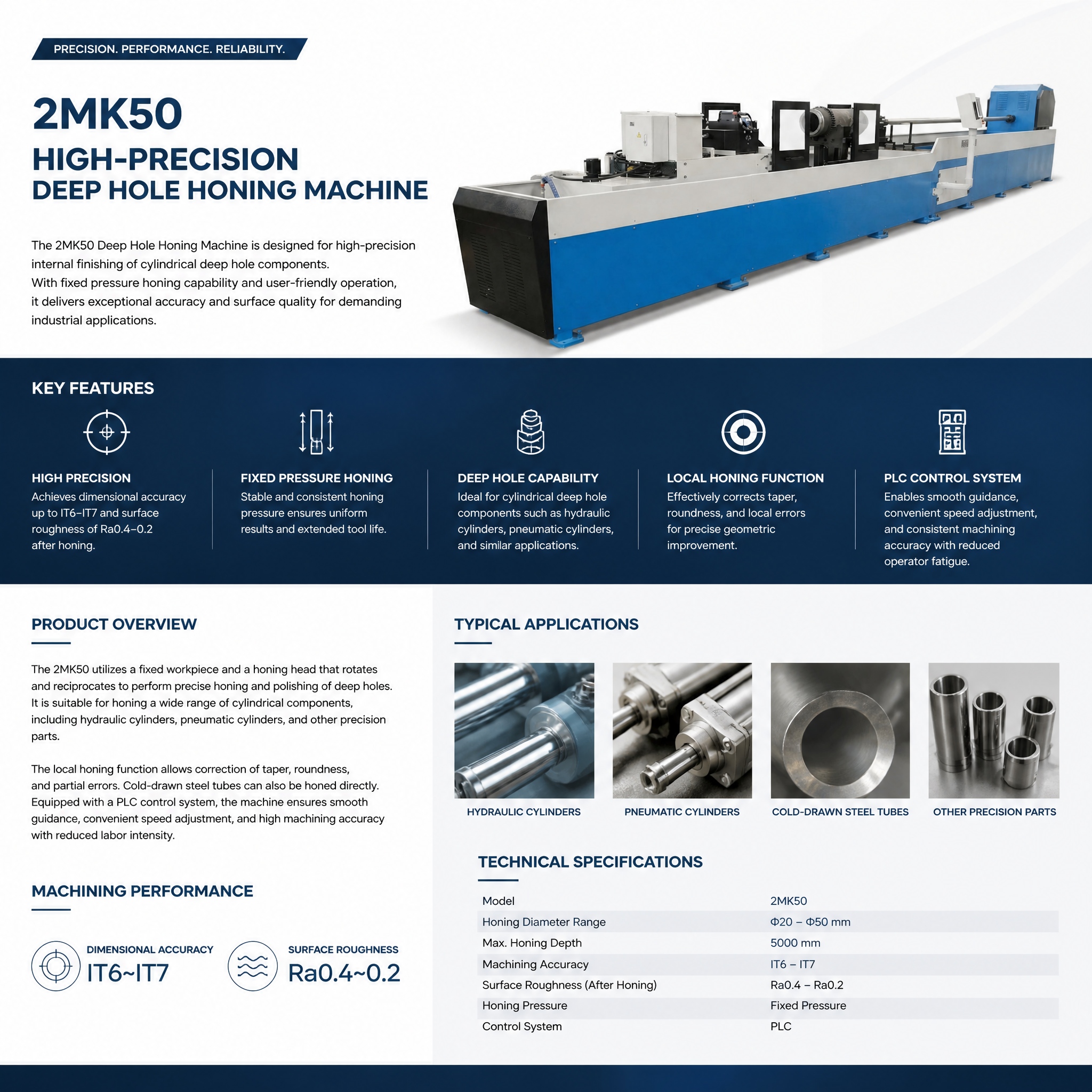

Korean2MK50 deep hole honing machine
Video Description

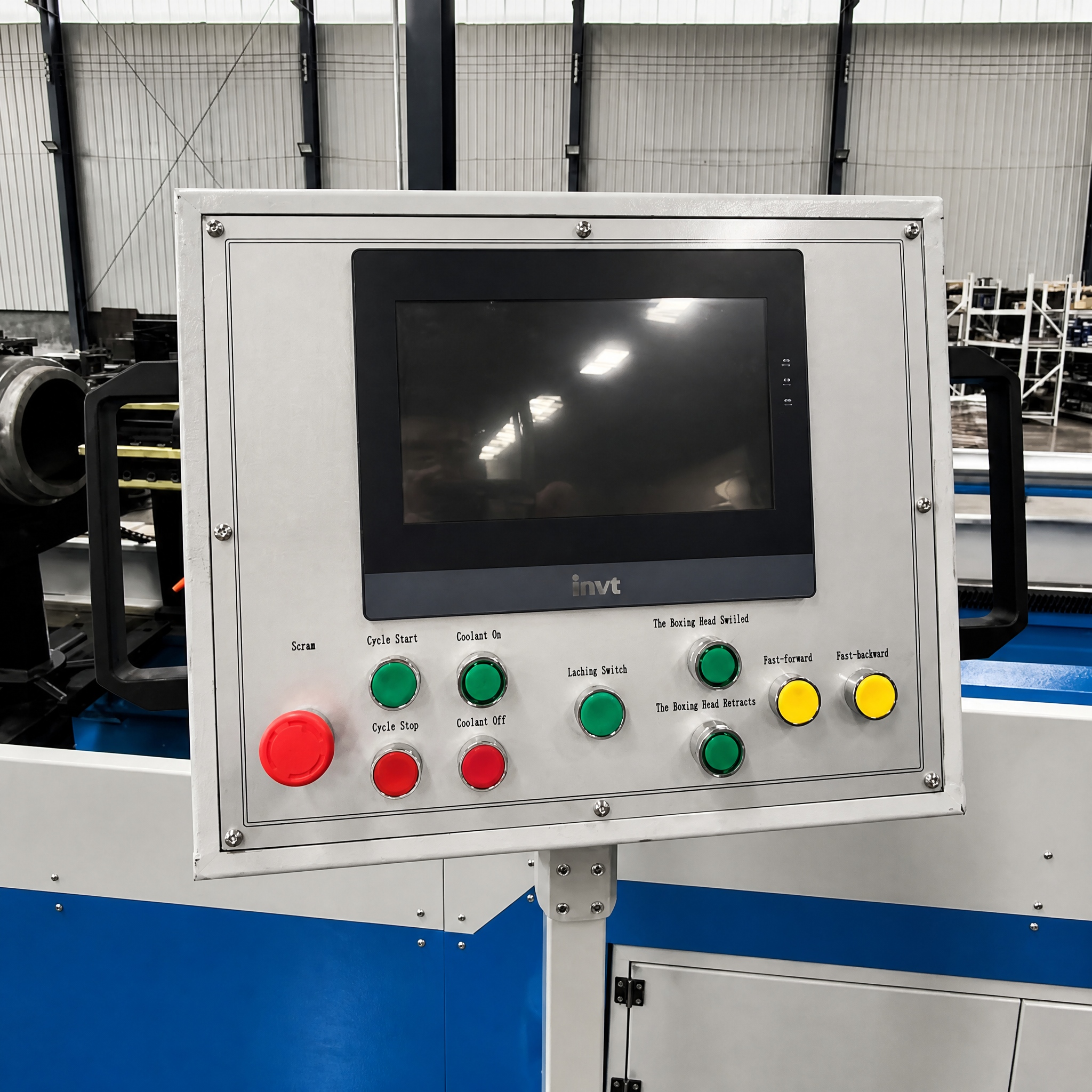

The 2MK50 honing machine tool can hone with fixed pressure and is easy to operate. The machine tool achieves the honing function by fixing the workpiece, rotating and reciprocating the honing head. This tool is suitable for honing and polishing cylindrical deep-hole workpieces, such as hydraulic cylinders and cylinders. Machining accuracy can be achieved to IT6~IT7, and the surface roughness after polishing can be achieved to Ra0.4-0.2. By local honing, the taper, cylindricity and local error of hole diameter can be corrected.This tool can also directly hone some cold drawing steel pipes.By equipped with PLC system,the machine tool can steer smoothly, change speed conveniently, ensure the accuracy and reduce the labor intensity.
Product application
Applied to aerospace, automotive manufacturing, oil and gas pipelines, lifting equipment, gun pipelines, bearings and other manufacturing industries.
We can customize according to your requirements.
Processing aperture range (mm) | 100-500 |
Maximum processing depth (mm) | 12000 |
Range of spindle speed for grinding rod box (r/min) | 10-200 stepless |

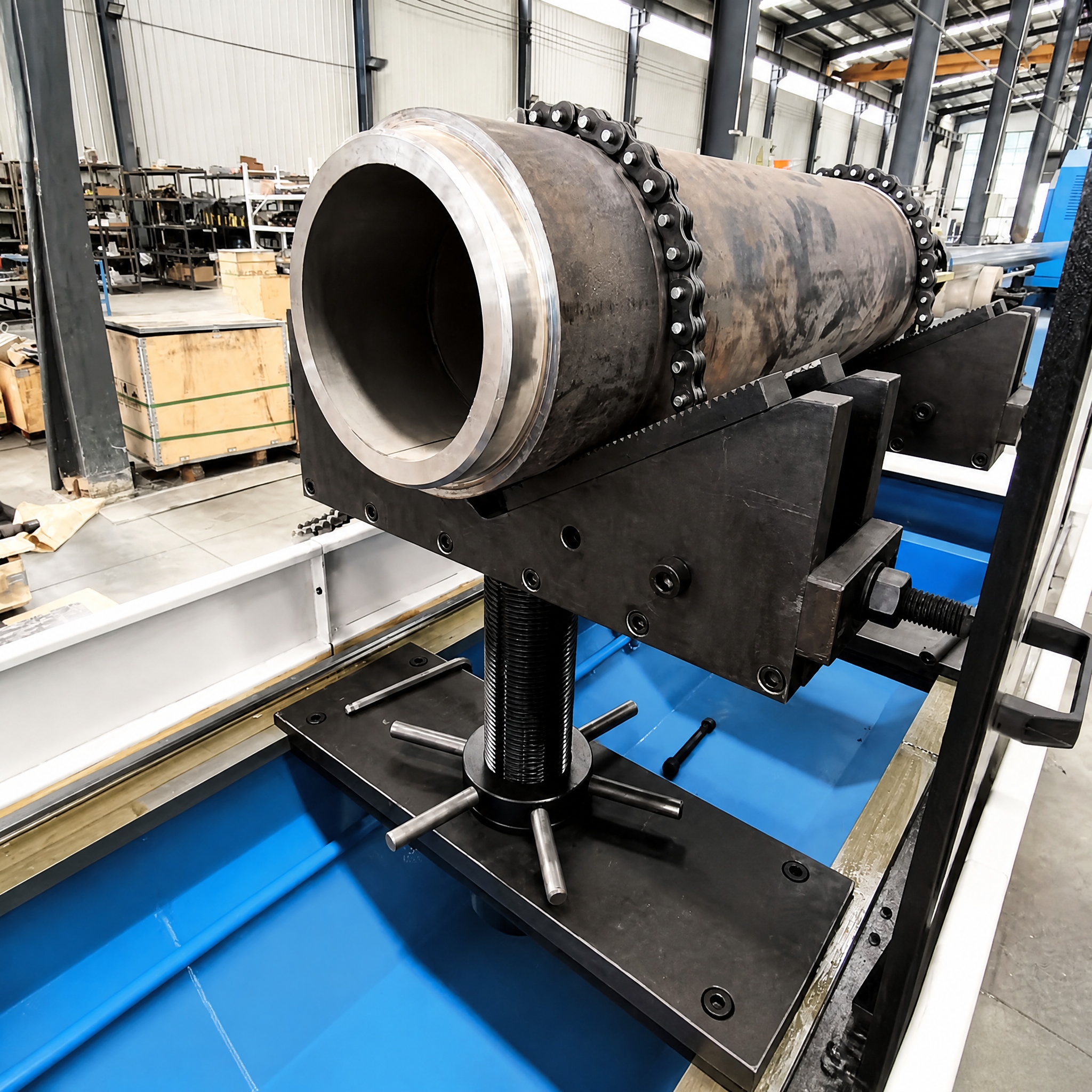

Range of workpiece clamping diameter (mm) | 150-650 |
Range of reciprocating speed of trailer (m/min) | 5-18 stepless |
Range of reciprocating speed of trailer (m/min) | 200 |
Working pressure of the hydraulic system for expanding the grinding head (MPa) | 4 |
Main motor power of grinding rod box (kW) | 15 Communication spindle motor |
Grinding rod box reciprocating motion motor | 70Nm Communication spindle motor |
Grinding head expansion motor power (kW) | 1.5 |
Cooling system motor power (kW) | 2.2 |
