Korean2MK80 deep hole honing machine
Video Description

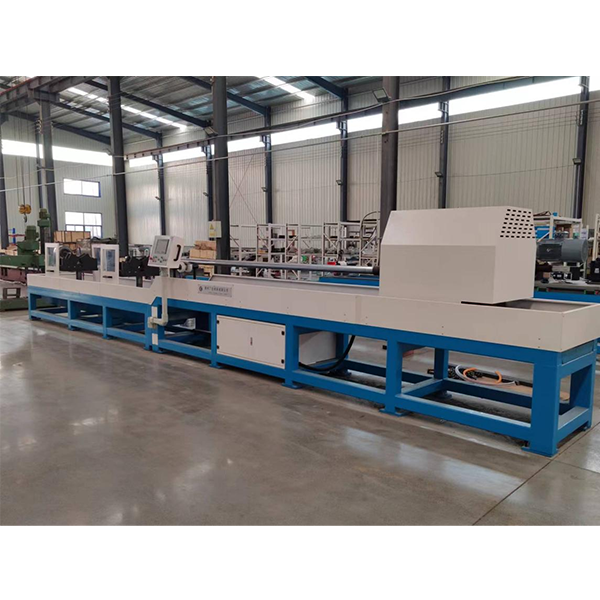

The 2MK80 CNC deep hole honing machine is an ideal equipment for high-precision and high-efficiency deep hole machining. Suitable for honing and polishing cylindrical deep hole workpieces, such as various precision fittings such as hydraulic cylinders and cylinders. Specially suitable for honing and polishing workpieces with step holes. Its machining aperture accuracy can reach IT8~IT9 level or above, and the surface roughness can reach Ra0.2~0.4 μ m. By using local honing, the taper, ellipticity, and local aperture errors of the workpiece can be corrected. For some cold drawn steel pipes, they can be directly subjected to strong honing.
Product application
Applied to aerospace, automotive manufacturing, oil and gas pipelines, lifting equipment, gun pipelines, bearings and other manufacturing industries.
We can customize according to your requirements.
Processing aperture range (mm) | 100-800 |
Maximum processing depth (mm) | 12000 |
Range of spindle speed for grinding rod box (r/min) | 10-200 stepless |
Range of workpiece clamping diameter (mm) | 150-650 |
Range of reciprocating speed of trailer (m/min) | 5-18 stepless |
Flow rate of cooling pump (l/min) | 200 |
Working pressure of the hydraulic system for expanding the grinding head (MPa) | 4 |
Main motor power of grinding rod box (kW) | 15 Communication spindle motor |
Grinding rod box reciprocating motion motor | 70Nm Communication spindle motor |
Grinding head expansion motor power (kW) | 1.5 |
Cooling system motor power (kW) | 2.2 |
