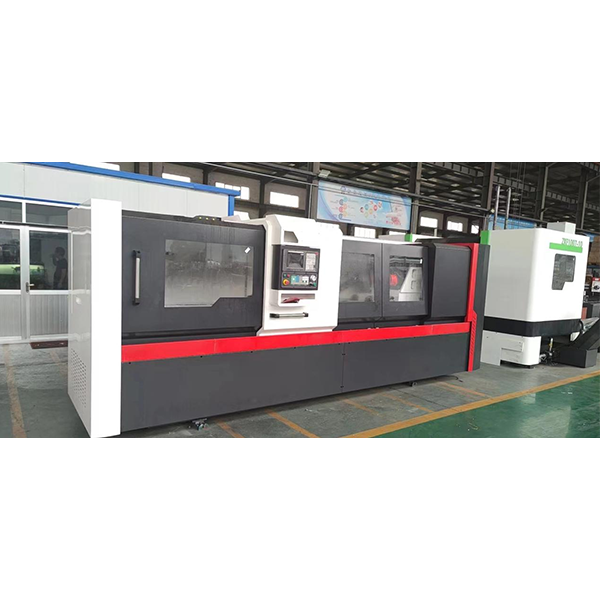

KoreanZK2102/03 series deep hole drilling machine
The ZK2102/03 series CNC deep hole drilling machine is an efficient, high-precision, and highly automated specialized deep hole drilling machine that uses the external chip drilling method (gun drilling method). Through one continuous drilling, it can replace the machining accuracy and surface roughness that usually require drilling, expanding, and reaming processes. This machine tool is controlled by a digital control system, which not only has single action function, but also has automatic cycle function. Therefore, it is suitable for small-scale processing, especially for the processing requirements of large-scale production. It can drill through holes as well as process blind holes or stepped holes.
Product application
Applied to aerospace, automotive manufacturing, oil and gas pipelines, lifting equipment, gun pipelines, bearings and other manufacturing industries.
We can customize according to your requirements.
Drilling diameter range (mm) | 10-35 |
Maximum drilling depth (mm) | 2000 |
Speed range of drill pipe box spindle (stepless) (r/min) | 200-3000 |
Range of feed speed for drill pipe box (tool) (stepless) (mm/min) | 10-500 |
Height from T-slot worktable to spindle center (mm) | 240 |
Fast moving speed of feed trailer (mm/min) | 3000 |
Feed motor torque (Nm) | 13 |
Total power of machine tool (approximately)(kW) | 21 |
Drill pipe box motor power(kW) | 5.5 |
Maximum pressure of cutting cooling system (adjustable)(MPa) | 10 |
Maximum flow rate of cutting cooling system(L/min) | 100 |
